Go Power 110W Commercial Solar Kit with 30A Charge Controller Kit

Pair your work or delivery truck with a 100W flexible solar kit to reduce idle time, extend battery life, and eliminate service calls due to dead batteries.

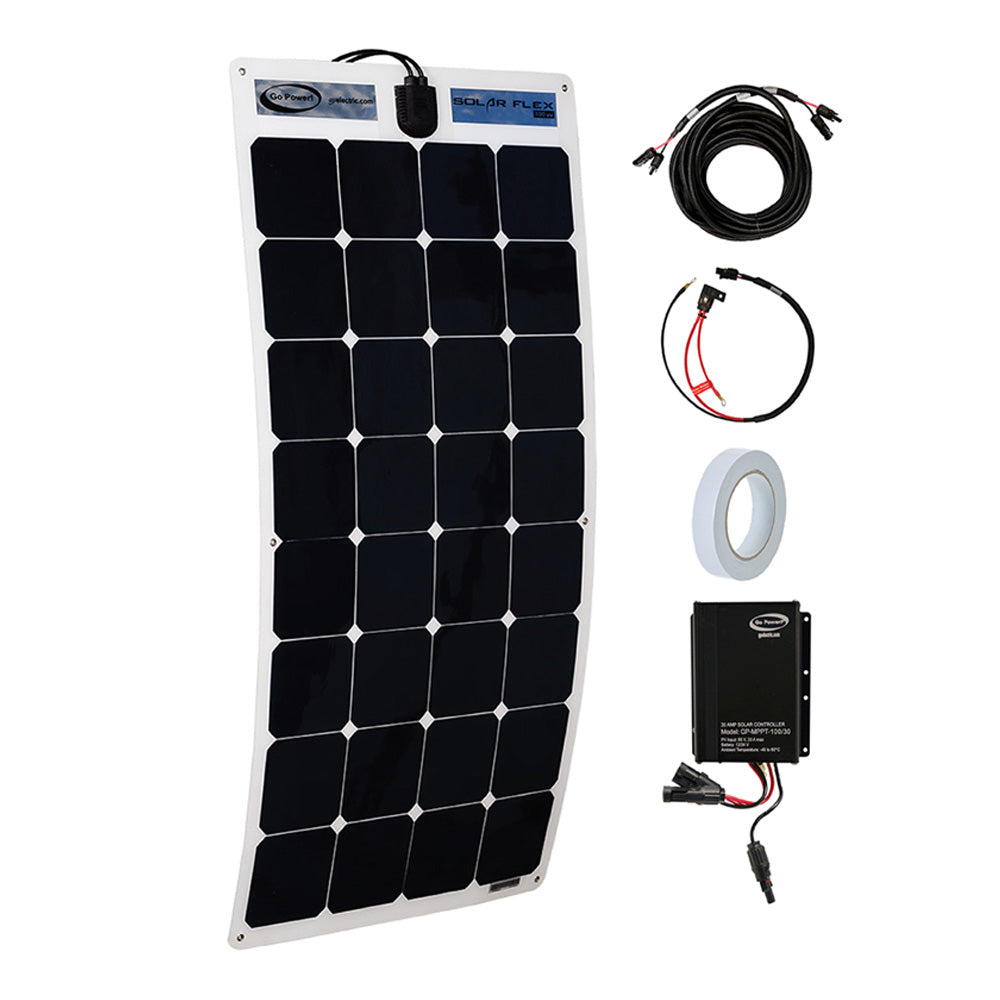

• KIT INCLUDES:
  • 110W Flexible Solar Module
  • MMPT Charge Controller (30A)

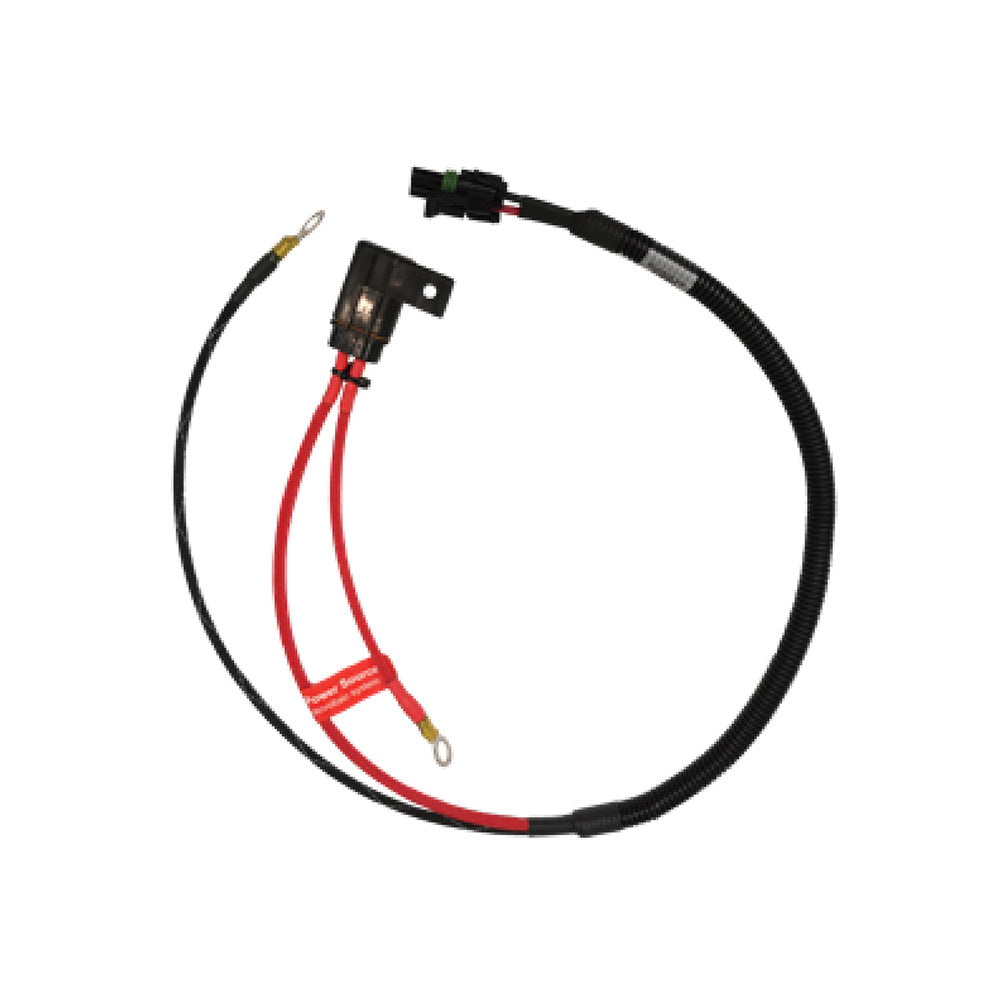

  • 20"™ Harness

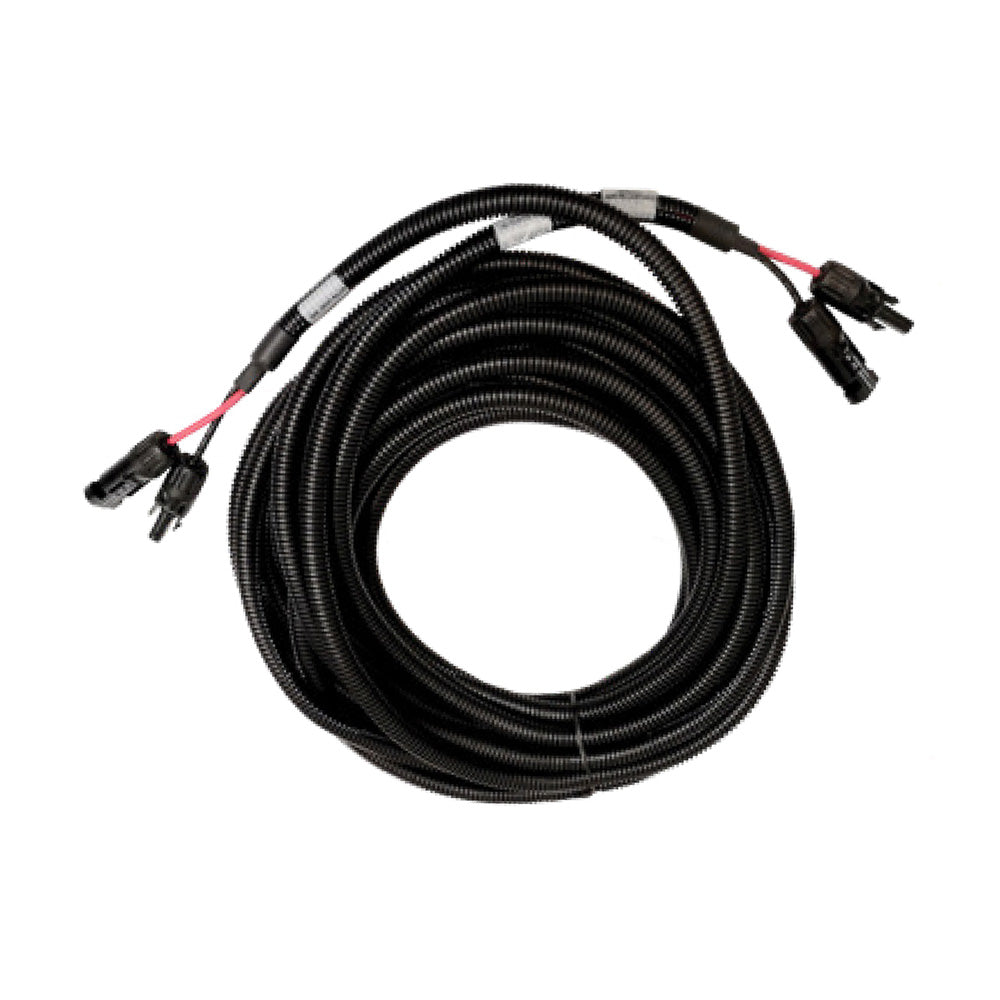

  • 30"™ Harness

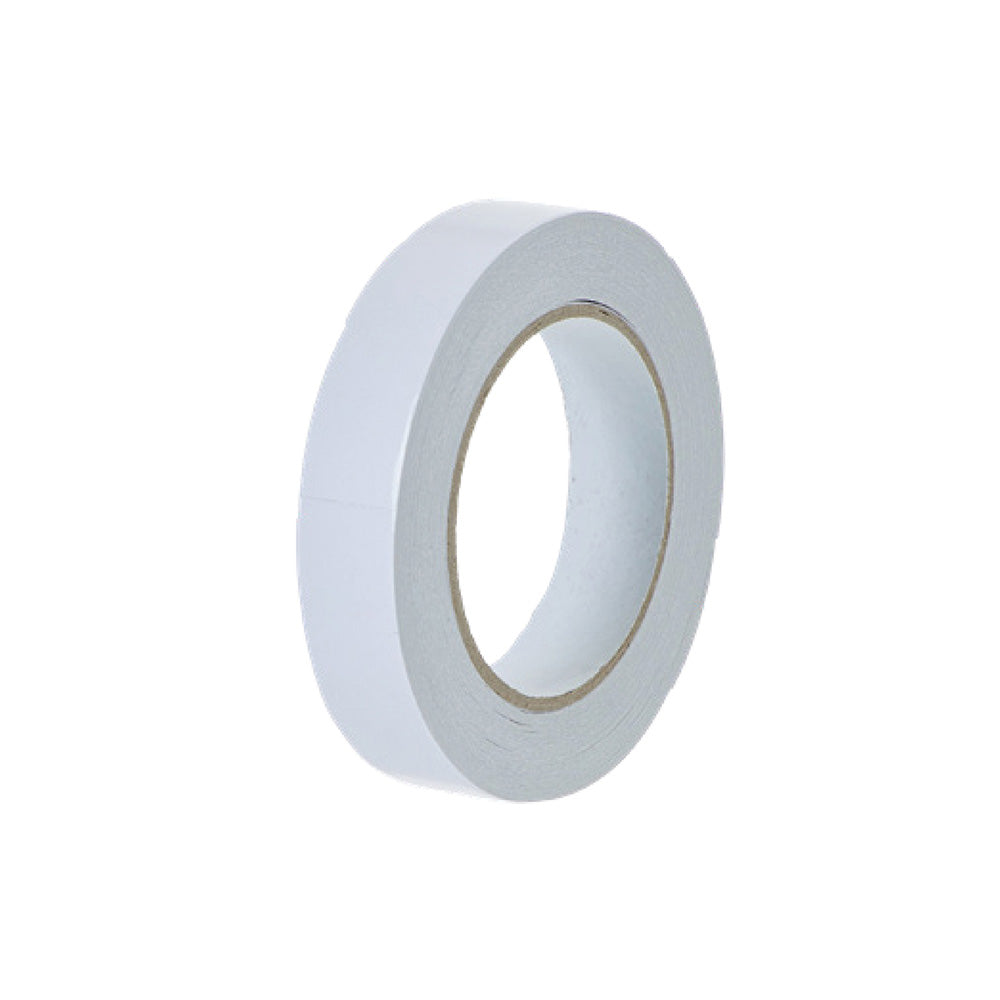

  • Perimeter Edge Tape

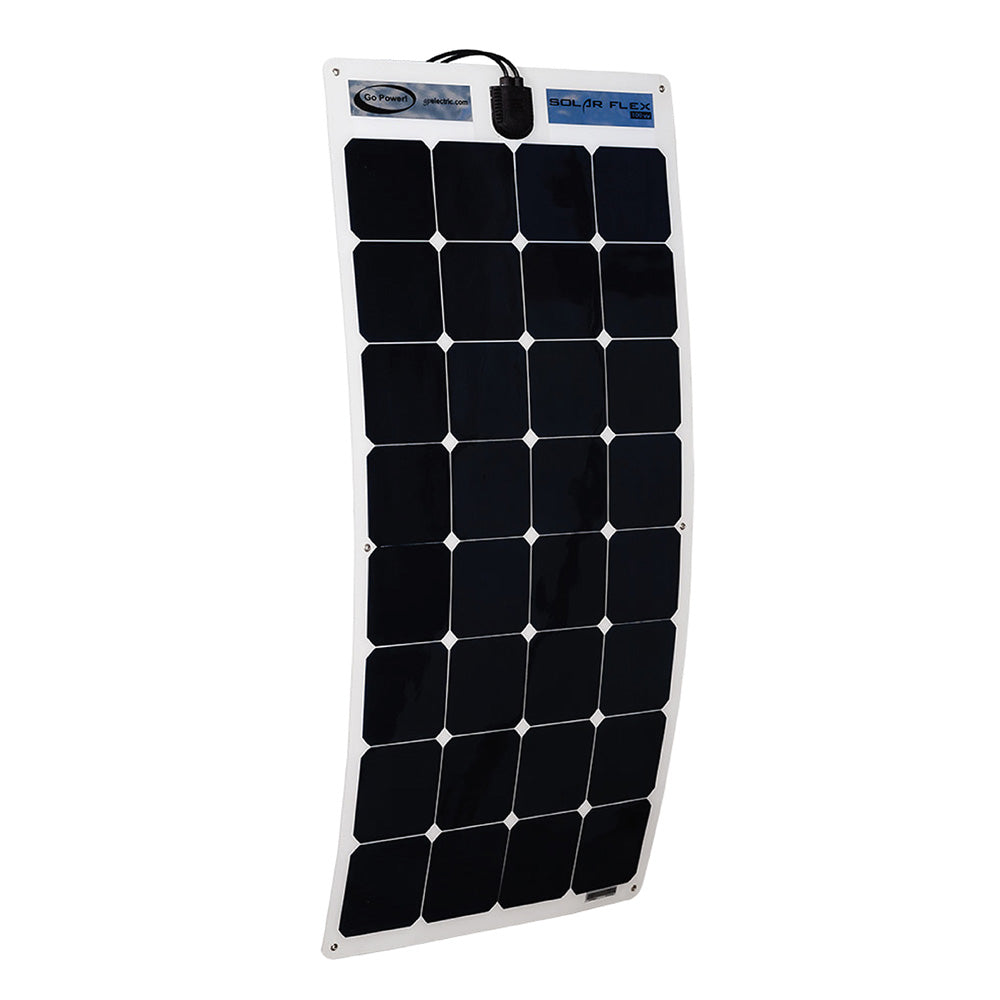

110W FLEXIBLE SOLAR MODULE:  Solar Flex solar panels are designed to provide a powerful charging solution for batteries. Unlike other "˜thin"™ products, Solar Flex uses high-efficiency monocrystalline cells that produce more power per square foot than any other flat panel on the market. Built to withstand the harshest conditions.

• FEATURES:
  • High-efficiency, back-contact solar cells
  • Penetrating or adhesive mounting option
  • Curves up to 30 degrees
  • Durable surface is less than 1/8 in (3 mm) thick
  • Industry standard quick-connect cables (SC) work in series or in parallel
  • Marine grade material
  • Up to 82% lighter than other solar modules
  • Solar output power limited warranty of 5 years
• SPECIFICATIONS:
  • Rated Power (Pm): 110W
  • Maximum Power Voltage (Vmp): 17.6V
  • Maximum Power Current (Imp): 6.31A
  • Open Circuit Voltage (Voc): 22.08V
  • Short Circuit Current (Isc): 6.60A
  • Power Coefficient: -0.38% / °C
  • Voltage Coefficient: -60.8mV / °C
  • Current Coefficient: 2.2mA / °C
  • Max Power Tolerance: +/- 5%
  • Cell Type: Monocrystalline
  • Solar Cell Efficiency: 21%
  • Series Fuse Rating: 10A
  • Maximum System Voltage: 600VDC
  • Weight: 2.9 lbs (1.35 kg)
  • Dimensions: 44.6 x 21.4 x 0.1 in (1134 x 544 x 3 mm)
  • Frame Type / Material: DNP topcoat, includes stainless steel grommets

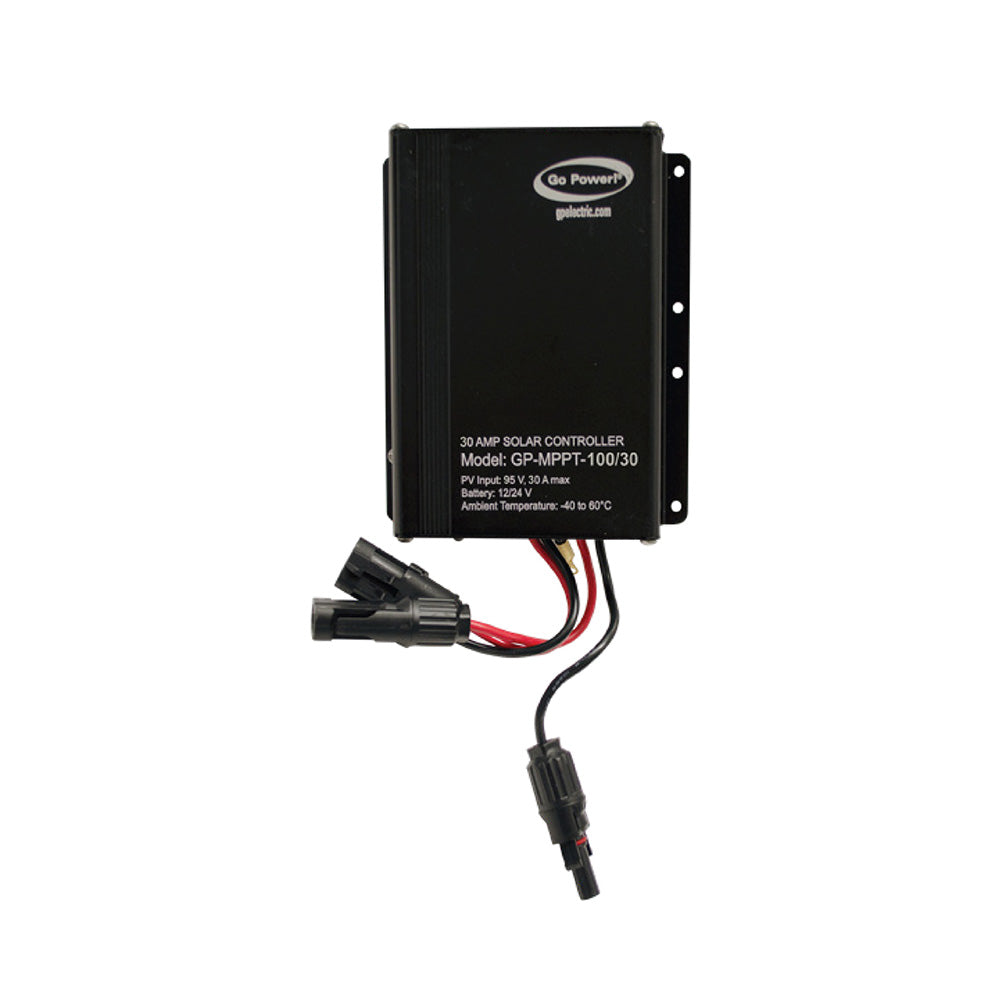

MMPT CHARGE CONTROLLER (30A):  The industrial Maximum Power Point Tracking (MPPT) charge controller featuring a robust, fully-sealed (IP67) housing that resists vibration as well as dust-, insect- and water ingress. The MMPT ensures maximum performance and yield from all types of PV systems year-round and in any environment.

• FEATURES:
  • IP67 rated waterproof protection with SC solar connections and Delphi battery connections
  • Up to 98% power conversion efficiency
  • Advanced multi-peak tracking technology, allowing for better charging in shaded areas)
  • Built-in over-temperature protection
  • Temperature compensation and automatic adjustment of charge and discharge parameters
  • Fully encapsulated design prevents damage from water, corrosion, insects and/or dust
  • Works with 12 or 24V battery systems (automatic battery voltage detection)
  • Supports lithium, sealed, vented, AGM, and flooded Lead Acid batteries
  • Converts excess array voltage into additional charging current
  • 5 year warranty
  • 30A CONTROLLER ALLOWS FOR EXPANSION "” ADDITIONAL SOLAR MODULES

• SPECIFICATIONS:
  • Nominal System Voltage: 12/24VDC (Auto Detection)
  • Max Solar Array Current: 30A
  • Rated Charge Power: 450W/12V (900W/24V)
  • Operating Consumption: <13mA/12V (<11.5mA/24V)
  • Temp. Compensation: -25 mV/K in 12V systems (-50mV/K in 24V systems)
  • Operating Temperature: 40 to 140 °F (-40 to 60 °C)
  • Dimming Value" 0-100 % (0-10 V output)
  • Battery Type: Lead acid (gel, AGM, flooded) adjustable, Lithium
  • Humidity: 99% N.C.
  • Dimensions (HxWxD): 6 X 5.1 X 2 in (152 X 128 X 43mm)
  • Weight: 2.86 lbs (1297 g)
  • Warranty: 5 years
  • Safety Features:
    • Battery Reverse Polarity
    • Solar Array Reverse Polarity
    • Over Temperature
    • Over Current
    • PV Short Circuit
    • Battery Short Circuit
